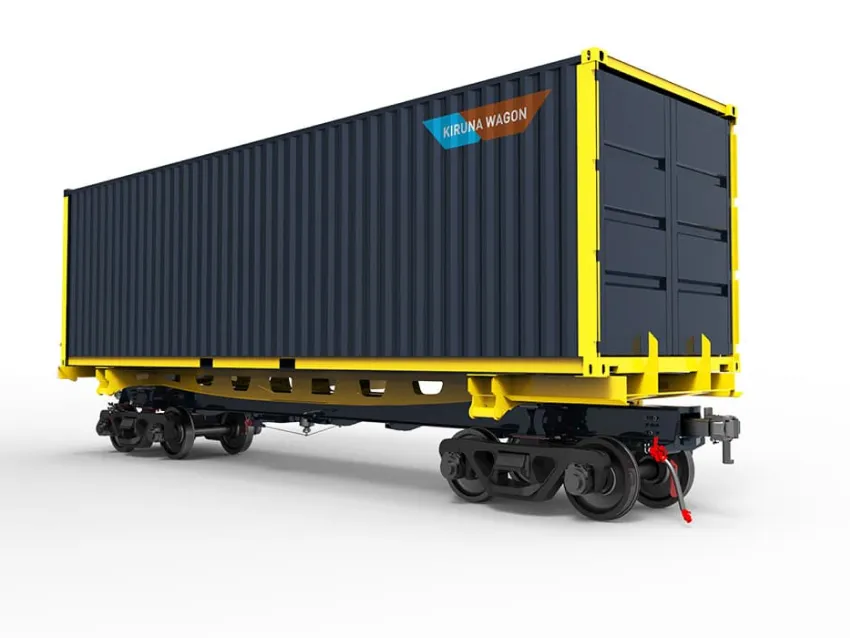

Modular Wagon Chassis for the projects thar are required a highly flexible solution.
Modular wagon chassis is designed to increase operational uptime and reduce stabling. With up to 90% of the total wagon cost in the chassis, maintaining continuous use is essential. The load carrier, which represents only 10–20% of the cost, can be swapped as needed, allowing for different types of cargo handling using a single chassis.
Assemble the modular wagon chassis and prepare it for wagon loading.
The wagon is loaded on the modular freight wagon system safely.
Now modular railcar underframe with the wagon on the top is ready to transport the cargo.
Yes. Modular wagon chassis system can be loaded with different types of wagons by changing the load carrier within minutes.
Railway wagon chassis is capable of transporting a wide range of cargo efficiently.
Our rail wagon underframe is provided fully customizable to operate on different track gauges and supports transitions between rail and road transport.
Modular Wagon Chassis is a high-performance underframe designed to remain continuously used. At the same time, different load carriers are swapped in and out. This separation between the capital-intensive chassis and the lightweight, purpose-specific load carriers leads to significantly more efficient use of resources.
Traditional wagons are built for a single purpose, often sitting idle when demand changes. In contrast, using the same base chassis, a modular wagon chassis system allows operators to adapt to different cargo types, including bulk materials, timber, liquid bulk, and containers. This transforms a static asset into a dynamic one.
modular railcar underframe is not just about flexibility; it’s about economics. Industry insights show that 80–90% of the total cost of a freight wagon comes from the chassis, which includes the couplers, brake systems, and running gear. By contrast, the load carrier, the component determining what the wagon carries, accounts for only 10–20% of the total cost.
With this cost distribution, keeping the freight wagon chassis in motion is essential to maximizing return on investment. Owning multiple load carriers per chassis means operators can keep their wagons in active service across varied freight tasks with carriers ready to go.
One of the most impactful features of a modular freight wagon system is its ability to switch load carriers in minutes. Whether the goal is transporting mining one day and containers the next, the interchangeable rail wagon underframe eliminates the need for large fleets of specialized wagons. Operators can reduce fleet size, cut stabling costs, and increase responsiveness to market changes, all while using the same core platform. The flexibility of the modular railcar underframe supports different rail gauges, making it highly effective in cross-border and intermodal logistics.
Efficiency also means moving more with less. The modular wagon chassis uses an ultralight underframe design, delivering a payload advantage of up to 5 tons compared to conventional modular wagon designs. This increased payload means fewer trips, less energy consumption, and a smaller environmental footprint. Over time, this improves operational profitability and aligns with modern sustainability goals, an increasingly important factor in rail transport strategies across mining, forestry, and logistics sectors.
